my first voodoo

Started by sevenal, 22 December 2002, 03:18:40

Previous topic - Next topic


I have a 3dfx interactive  inc. card, how can i tell which card it is?
it was made in 1999
one large 3dfx chip
8 smaller siemens chips
has a N2544 # on it
a upc sticker with a long line of numbers

has 210-0383-001-A0 on it
if you know this card can you please tell me which card i have?
also if you could point me at the correct driver for WinMe
Thanks   sevenal

"Get thee behind me Satan"
"Get thee behind me Satan"


Post a picture and we'll try helping you :)


If you card have 32 bit resolution is a voodoo 4,

without image is very dificult, try here


i would say a Banshee

In-ter-ac-tive :
The way video games were always meant to be played

Welcome to Community


I have a 3dfx card with the num n2544 and 210-0383-001-ad where can i find the drivers?Thank-you all


You both have to post a picture of your card if you want us to help you. we will be able to identify it right a way if we see it.


Asus P4P800 i865PE | Intel 2.8 GHz P4C | 512 Mb Kingston PC3200 Dual channel DDR SRAM | 80 Gb Western Digital SE HD | Plextor 12/10/32A CD-RW | Win2000 SP3 | ATI Radeon 9500 Pro | 6-channel AD1985 audio CODEC|

Asus P4P800 i865PE | Intel 3.2 GHz P4C | 2048 Mb Kingston PC3200 Dual Channel DDR SRAM | 160 Gb Western Digital SATA HD | NEC ND-3520 16X DVD-RW | WinXP Pro SP2 | ATI Radeon X850 Pro | 6-channel AD1985 audio CODEC | 3Com 3C940 Gigabit LAN | Diamond Monster 3D II 24Mb SLI


Is the Card in your pc ?

In-ter-ac-tive :
The way video games were always meant to be played

Welcome to Community


I have a card just like that but i have a heat sink on it so i cant see the chip. i need drivers for it but cant get right ones since dont konw what it is... if i cant get some help on what it is please contact me here, thanks

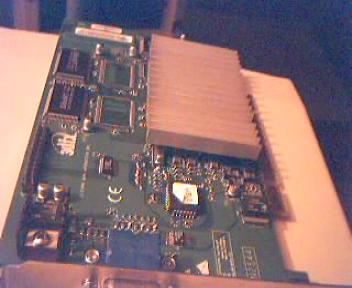

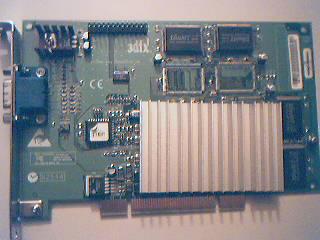

Here are 2 images of my board. i have more if needed

Download Attachment: IMAGE04.jpg
17.78 KB

Download Attachment: IMAGE01.jpg
15.74 KB


look at this page  there are many pictures, so you can easly identify your card.


Looks like a Voodoo 3 3000PCI...

| AMD Athlon XP (Barton) 2800+ @ 3200+ (11x200) | Cooler Master Jet 7 | ABIT NF7-S Rev 2.0 (nForce 2) | Corsair TWINX1024-3200C2 | Sapphire ATi Radeon 9500np>9700np | Sound Blaster Live! X-Gamer 5.1 | 3dfx VoodooTV 200 PCI | Western Digital 40GB & 120GB HDD | Pioneer 106s DVD | LG 52x24x52 CDRW | Cambridge Soundworks Desktop Theater 5.1 DTT3500 Digital Speakers |


I confirm , IT IS a voodoo 3 3000 PCI, only the Voodoo 3 3000 has that kind of heatsink and is PCI (and of course, no tv-out)


That ain't the final rev. All finals have tv-out Including pci-s. RAMs are also different.
Just your ordinary nVidiot hunter


This is V3 3000 PCI with SGRAM memory chips. No tv out - maybe it's V3 2000 PCI SGRAM with V3 3000 heatsink. I own V3 2000 PCI SGRAM - it's exactly the same card with 6ns memory but with smaler heatsink (also made of Al and "gray colored" just smaler.)Mine card was made in 2000. Download Amigasport 3.0 XP drivers for XP or 1.07 official drivers (last and the best) if you are win 98,ME user.
