sloomy
Average

Germany


111 Posts

Posted - 15/10/2003 :  00:42:02  Show Profile  Visit sloomy's Homepage  Reply with Quote
Hello 3dfxzone.it Community !






Have you any idea, that this VOodoo5 shown in the pictures on AGP 4X works ?( imean with lower voltage , not with 3,3 V) ?

Does anyone form the forum have same or similar card, (there is also the same card with LCD out, but this is pure engineering sample)

Thanks

kind regards


amp_man
Experienced

545 Posts

Posted - 15/10/2003 :  03:38:43  Show Profile  Visit amp_man's Homepage  Reply with Quote
that is a voodoo 5 5500. it will not work with AGP 4x, and will therefore not work with the newer 1.5V standard. however, there are constantly threads on discussing possible ways to defeat this, ranging from a 1.5-to-3.3V adapter, an AGP-to-PCI adapter, or possibly adding something to the board itself to make it work. anyways, keep an eye out for threads like that, and for the time being, I hope you have a motherboard that supports 3.3V

EDIT: LCD out was not available on the V5 series cards. however, that you have the potential for something (i.e. the connector above the monitor output) is interesting, as mine does not have that. btw, I have a V5 5500 AGP also.

when the sun goes down, the music turns up...

Windows XP Pro|Athlon XP 1800+|GeForce2(temporarily, for compatibility purposes)|
MSI K7T266Pro2-A|768MB DDR 2700 RAM|SonicEdge 5.1 Sound Card|Sony 500 watt 5.1 surround sound

Edited by - amp_man on 15/10/2003 04:12:11
Go to Top of Page

lecram25
Average

USA
327 Posts

Posted - 15/10/2003 :  04:27:55  Show Profile  Visit lecram25's Homepage  Reply with Quote
Actually, amp_man, I'm gonna have to own you there buddy. That card is an engineering sample; notice the the extra notch on the agp slot.

quote:
EDIT: LCD out was not available on the V5 series cards. however, that you have the potential for something (i.e. the connector above the monitor output) is interesting, as mine does not have that. btw, I have a V5 5500 AGP also.



All the MAC series of Voodoo 5's had LCD (DVI) out, also, there are a few engineering samples, like his, that were made for PC, that have LCD out...like this one...







And here are a few more engineering samples...
Voodoo 4 4500 AGP (almost bought this one off of ebay for dirt cheap):








And the Voodoo 4 4800 PCI:









| AMD Athlon Thunderbird 1.33GHz | Epox 8RDA+ nForce 2 | 256mb DDR PC2100 | Sapphire ATI Radeon 9500np>9700pro | Sound Blaster Live! X-Gamer 5.1 | 3dfx VoodooTV 200 PCI | Western Digital 40Gig 7200RPM | Pioneer 106s DVD | LG 52x24x52 CDRW | Cambridge Soundworks/Creative Labs Desktop Theater 5.1 DTT3500 Digital Speakers | Creative IR Remote | WindowsXP Professional SP1 |

Edited by - lecram25 on 15/10/2003 07:56:31
Go to Top of Page

lecram25
Average

USA
327 Posts

Posted - 15/10/2003 :  04:31:47  Show Profile  Visit lecram25's Homepage  Reply with Quote
To answer sloomy's question, yes, it will work in newer motherboards...but don't quote me on that...wait untill Mr. Semenec, and/or Bloodworm reply...

EDIT: * my spelling varies from time to time *

| AMD Athlon Thunderbird 1.33GHz | Epox 8RDA+ nForce 2 | 256mb DDR PC2100 | Sapphire ATI Radeon 9500np>9700pro | Sound Blaster Live! X-Gamer 5.1 | 3dfx VoodooTV 200 PCI | Western Digital 40Gig 7200RPM | Pioneer 106s DVD | LG 52x24x52 CDRW | Cambridge Soundworks/Creative Labs Desktop Theater 5.1 DTT3500 Digital Speakers | Creative IR Remote | WindowsXP Professional SP1 |

Edited by - lecram25 on 15/10/2003 07:58:13
Go to Top of Page

sloomy
Average

Germany


111 Posts

Posted - 15/10/2003 :  09:38:18  Show Profile  Visit sloomy's Homepage  Reply with Quote
thanks for Qiuck replys and espec. @ lecram25 for exccellent pictures

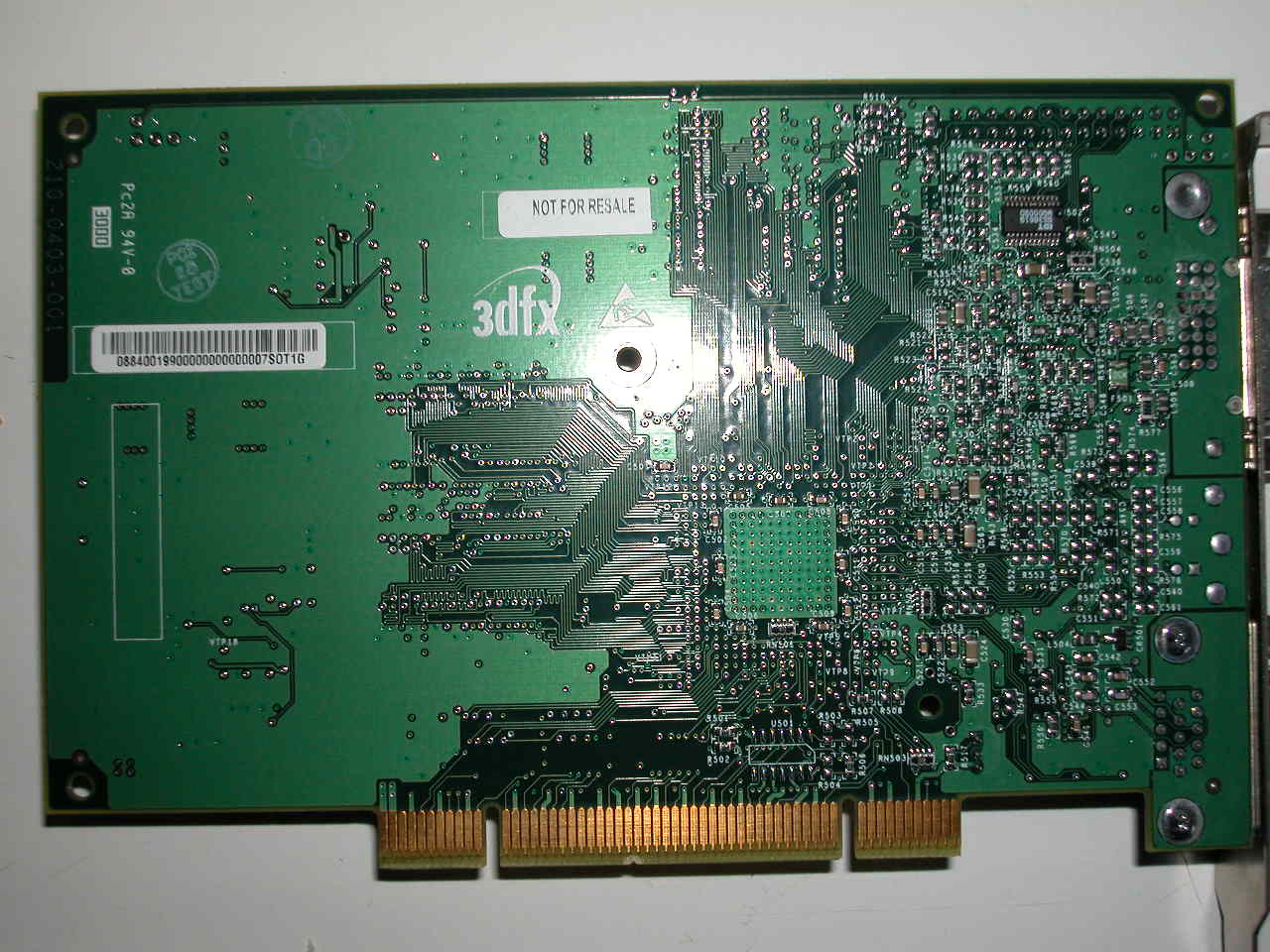

I have also eventuell an VOodoo4 4500 PCI with this Bios Screen



this is the card:




Would that mean, that i have a Voodoo4 4500 PCi engineering sample for PC ? Or VOodoo Mac Versions can also show its Bios on a normal PC ? Because after this BIos, i don't get any picture on my screen, until after 7 minutes or so this picture is showing



for 5 seconds than again nothing more ?


Thanks for your answers and ideas

regards

Go to Top of Page

vykupitel
Initiate

Czech Republic


86 Posts

Posted - 15/10/2003 :  12:56:24  Show Profile  Visit vykupitel's Homepage  Reply with Quote
No, MAC version have different BIOS. They not show on PC. You must flash them with normal BIOS for V5. Look at Stanto`s page.

Does anybody here have this version V5 with AGP4x? I definitely need BIOS from that baby. I have VoodooMAC and I`d like to activate DVI output.

AthlonXP 2100+@2700+, 256MB PC266@333 RAM,MSI MS-746F Ultra,
Voodoo5 MAC PCI + Voodoo5 6000 rev. 3700 A

Edited by - vykupitel on 15/10/2003 13:07:18
Go to Top of Page

lecram25
Average

USA
327 Posts

Posted - 15/10/2003 :  20:37:34  Show Profile  Visit lecram25's Homepage  Reply with Quote
vykupitel, maybe you should ask sloomy to dump the bios for you?

| AMD Athlon Thunderbird 1.33GHz | Epox 8RDA+ nForce 2 | 256mb DDR PC2100 | Sapphire ATI Radeon 9500np>9700pro | Sound Blaster Live! X-Gamer 5.1 | 3dfx VoodooTV 200 PCI | Western Digital 40Gig 7200RPM | Pioneer 106s DVD | LG 52x24x52 CDRW | Cambridge Soundworks/Creative Labs Desktop Theater 5.1 DTT3500 Digital Speakers | Creative IR Remote | WindowsXP Professional SP1 |
Go to Top of Page

sloomy
Average

Germany


111 Posts

Posted - 15/10/2003 :  21:15:47  Show Profile  Visit sloomy's Homepage  Reply with Quote
Have the Voodoo4 4500 and Voodoo5 5500 the same Bioses ? IF yes i have dumped the bios of this VOodoo4 4500 LCd and can send to your e mail ..

What about my questions over there ?

cheers

Go to Top of Page

bloodworm
Average

USA


278 Posts

Posted - 15/10/2003 :  23:08:23  Show Profile  Visit bloodworm's Homepage  Reply with Quote
looks like it will work in a 1.5V agp slot to me. the extra slot in the AGP connector is the tip off here. looks like a MAC V5 or a V5 5000 though. the 5000 only has 32MB of ram total but will work in a 1.5V slot.
Go to Top of Page

sloomy
Average

Germany


111 Posts

Posted - 15/10/2003 :  23:35:25  Show Profile  Visit sloomy's Homepage  Reply with Quote
How can you be sure ? I don't want to harm the card!! and of course also my system :)
Go to Top of Page

lecram25
Average

USA
327 Posts

Posted - 16/10/2003 :  01:22:37  Show Profile  Visit lecram25's Homepage  Reply with Quote
Well like Bloodworm said, the extra notch.

| AMD Athlon Thunderbird 1.33GHz | Epox 8RDA+ nForce 2 | 256mb DDR PC2100 | Sapphire ATI Radeon 9500np>9700pro | Sound Blaster Live! X-Gamer 5.1 | 3dfx VoodooTV 200 PCI | Western Digital 40Gig 7200RPM | Pioneer 106s DVD | LG 52x24x52 CDRW | Cambridge Soundworks/Creative Labs Desktop Theater 5.1 DTT3500 Digital Speakers | Creative IR Remote | WindowsXP Professional SP1 |
Go to Top of Page

amp_man
Experienced

545 Posts

Posted - 16/10/2003 :  02:37:31  Show Profile  Visit amp_man's Homepage  Reply with Quote
@lecram, I must agree (and admit defeat, this time), I failed to notice the extra notch in the AGP connector, which if I had been thinking I would have noticed after seeing the DVI connector area.
@sloomy, re: the V4 4500 PCI, do you have the "VGA palette snoop" option turned on in the BIOS? I have seen a similar problem caused by this.

when the sun goes down, the music turns up...

Windows XP Pro|Athlon XP 1800+|GeForce2(temporarily, for compatibility purposes)|
MSI K7T266Pro2-A|768MB DDR 2700 RAM|SonicEdge 5.1 Sound Card|Sony 500 watt 5.1 surround sound
Go to Top of Page

beta
Novice

24 Posts

Posted - 16/10/2003 :  02:37:42  Show Profile  Visit beta's Homepage  Reply with Quote
The images in the first post show the Voodoo 5500 AGP 2.0 1.5/3.3V with universal edge connection. That PCB is the direct counterpart to the standard Voodoo 4 4500 AGP. It is The PCB that the Voodoo 5 should have had. It will still only run as a PCI 66 device though. It also facilitates LCD though the package is not installed unlike in the third post where the bracket has been removed and a LCD package soldered in place.

V5 5500 & V4 4500 sys' ~ Mandrake Linux 9.1
Go to Top of Page

amp_man
Experienced

545 Posts

Posted - 16/10/2003 :  03:30:55  Show Profile  Visit amp_man's Homepage  Reply with Quote
quote:
Originally posted by beta

The images in the first post show the Voodoo 5500 AGP 2.0 1.5/3.3V with universal edge connection. That PCB is the direct counterpart to the standard Voodoo 4 4500 AGP. It is The PCB that the Voodoo 5 should have had. It will still only run as a PCI 66 device though. It also facilitates LCD though the package is not installed unlike in the third post where the bracket has been removed and a LCD package soldered in place.

V5 5500 & V4 4500 sys' ~ Mandrake Linux 9.1



cool beans! in other words, the V5 (except for the MAC, forgot to include that, oops) was not available with the DVI connector, it had to be added. and, as I stated before, AGP 4x will not work, or at least if it does will have damn near no effect. i guess the only thing you corrected me about was the 1.5V support. sorry lecram, you know how much I hate to argue with you

when the sun goes down, the music turns up...

Windows XP Pro|Athlon XP 1800+|GeForce2(temporarily, for compatibility purposes)|
MSI K7T266Pro2-A|768MB DDR 2700 RAM|SonicEdge 5.1 Sound Card|Sony 500 watt 5.1 surround sound
Go to Top of Page

beta
Novice

24 Posts

Posted - 16/10/2003 :  04:00:00  Show Profile  Visit beta's Homepage  Reply with Quote
quote:
Originally posted by amp_man


cool beans! in other words, the V5 (except for the MAC, forgot to include that, oops) was not available with the DVI connector, it had to be added. and, as I stated before, AGP 4x will not work, or at least if it does will have damn near no effect. i guess the only thing you corrected me about was the 1.5V support. sorry lecram, you know how much I hate to argue with you

when the sun goes down, the music turns up...


Partly correct, the 2x and 4x AGP rates don't function on the VSA-100 SLI config in general as it does not have a bridge controller, that is whatever signalling is used.

The DVI connector does not even have a location for installation on the 3.3V AGP 1.0 Dual SLI PCB, but on the one in the first post (1.5/3.3V AGP Universal 2.0 Dual SLI PCB) it does, just like the Voodoo 4 4500 AGP PCB, which also has a location for an S-Video package in addition.

V5 5500 & V4 4500 sys' ~ Mandrake Linux 9.1
Go to Top of Page

Rolo01
Experienced

Germany


508 Posts

Posted - 16/10/2003 :  09:48:17  Show Profile  Visit Rolo01's Homepage  Reply with Quote
Ok, lets get this straight.
I have a V5-5000 that looks like the 5500 shown above, it has the AGP 4x notch but is missing the DVI port.
Can I really put this baby into a 1.5V only AGP slot ?
I remember some old cards ( like Riva TNT or Savage ) having that notch but they were true 3.3V cards...
The last thing I want is to blow up that V5 and/or my mainboard...
Go to Top of Page
