As Promised : V2 vs Intel Extreme Graphics

[secretfj]

Candidates :
1. Diamond 3D monster2 (Voodoo 2) 12MB X2 SLI
2. Intel Desktop Board D845GLAD (845GL Onboard)

Shared Components:

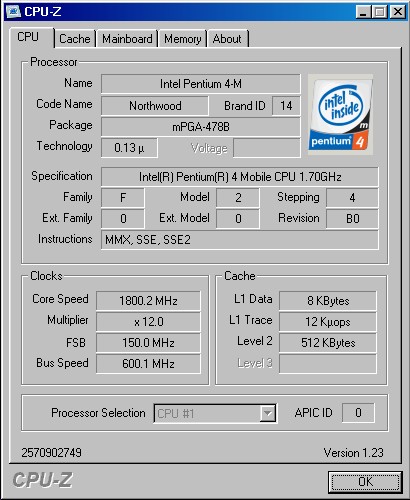

Pentium 4 M 1.7GHz @ 1.8GHz (150FSB X 12) <--Using Celeron D Heatsink
Intel Desktop Board D845GLAD
256MB PQI PC2100 DDRRAM @ 150MHz DDR
Seagate ST320014A

Drivers:
V2 uses Fastvoodoo 4.6
845GL uses Intel Driver 4.14.10.3732

Test:
3D Mark 2001SE build 330

The results are as follows: (IEG behaves better than V2)


Image Insert:

59.92#63728;KB

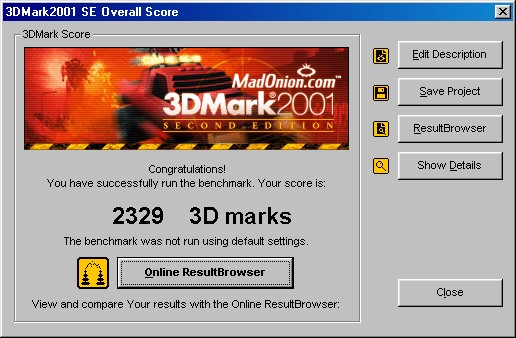

Above is the result of 845GL

Image Insert:

59.14#63728;KB

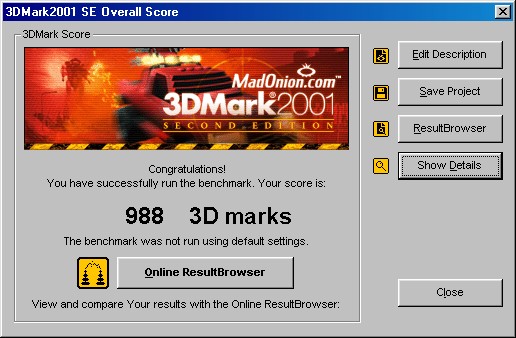

V2


Image Insert:

16.16 KB

Image Insert:

44.86 KB

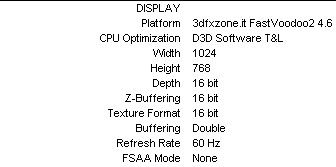

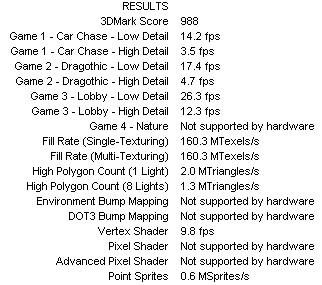

Detailed (V2)

Image Insert:

21.65 KB

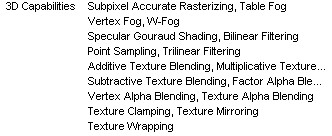

the 3D capabilities of V2 reported by 3D Mark

Image Insert:

16.78 KB

Image Insert:

44.56 KB

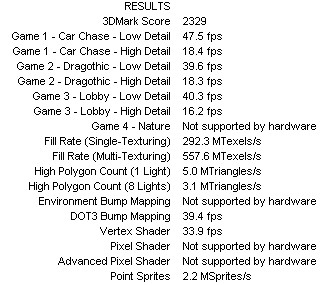

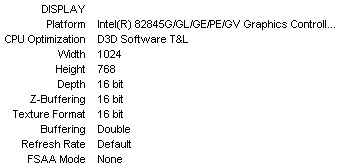

Detailed (845GL)

Image Insert:

33.14 KB

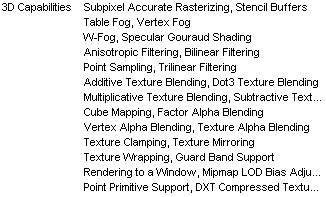

3D capabilities of IEG1 reported by 3D Mark

Image Insert:

64.18 KB

Image Insert:

51.97 KB

Something to say:
1. The original Celeron D HSF (the one with copper core) behaves very differently than the original celeron 4 HSF (my sister's C1.7). It's very NOISY....as noisy as a hair dryer
2. The preformance of IEG is quite affected by the CPU (most likely the cache). i used to use the board with a celeron 1.7, it's 3D mark result is awful (just above 1000 marks), now with a P4M, it doubled..
3. I will do the OpenGL test later, stay tuned!

[NitroX infinity]

Which scores belong to which cards?

[secretfj]

Originally posted by Phalanx

Which scores belong to which cards?

I've edited my original topic..to make it more readable
V2 gives 8xx marks
845GL gives 2xxx marks

[agrelaphon]

V2 gives 8xx marks

Ain't that low for a V2 SLI + P4 ??
My V3 + P3@800 does about 13xx

[secretfj]

i dunno...
i think it's quite low too..
first i think it maybe due to limited PCI bandwidth, so i overclock and make the freq of PCI bus higher, it does perform better (from 7xx to 988), but still quite low..

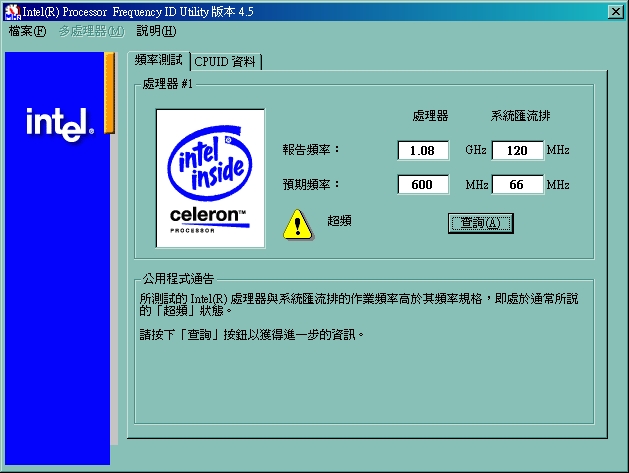

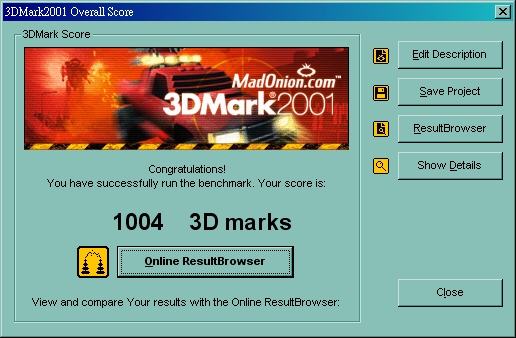

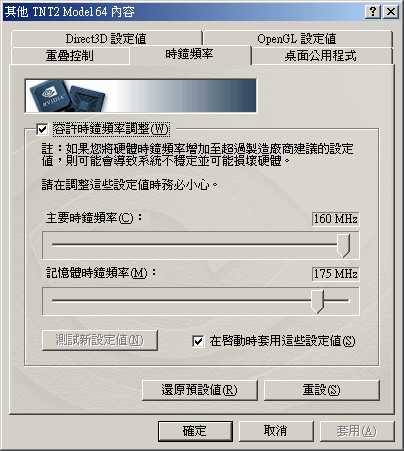

i can get a thousand mark with a Celeron 1.08G and a overclocked TNT2 M64 (but all are thrown away by me now...)
maybe the next step is to get some heatsink and fans for Chips/memory, then try to overclock those V2s...



Image Insert:

129.73 KB

Image Insert:

31.28 KB

Image Insert:

124.91 KB

[NitroX infinity]

What operating system are you using?
WindowsXP or Windows98se?

[secretfj]

Originally posted by Phalanx

What operating system are you using?
WindowsXP or Windows98se?

oh sorry, forgotten to say, all the tests are done in Windows 98 (non-SE) English version, using DirectX 9.0B
